clockmanager_c.h File Reference

C wrapper to the Clock Manager APIs to set up Client and monitor clock synchronization events. More...

#include "pub/clkmgr/types_c.h"
#include "pub/clkmgr/timebase_configs_c.h"
#include "pub/clkmgr/subscription_c.h"
#include "pub/clkmgr/event_c.h"
#include <time.h>

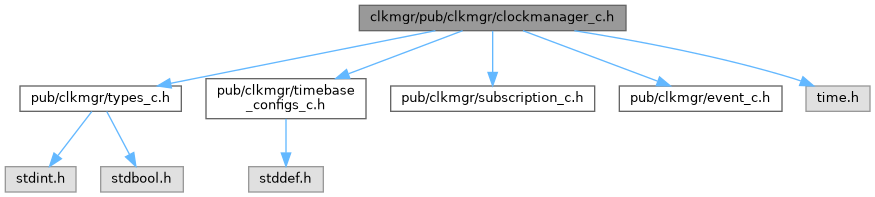

Include dependency graph for clockmanager_c.h:

Go to the source code of this file.

Functions
bool	clkmgr_connect ()
bool	clkmgr_disconnect ()
size_t	clkmgr_getTimebaseCfgsSize ()
bool	clkmgr_subscribeByName (const Clkmgr_Subscription *sub_c, const char *timeBaseName, Clkmgr_ClockSyncData *data_c)
bool	clkmgr_subscribe (const Clkmgr_Subscription *sub_c, size_t timeBaseIndex, Clkmgr_ClockSyncData *data_c)
enum Clkmgr_StatusWaitResult	clkmgr_statusWaitByName (int timeout, const char *timeBaseName, Clkmgr_ClockSyncData *data_c)
enum Clkmgr_StatusWaitResult	clkmgr_statusWait (int timeout, size_t timeBaseIndex, Clkmgr_ClockSyncData *data_c)
bool	clkmgr_getTime (struct timespec *ts)

Detailed Description

C wrapper to the Clock Manager APIs to set up Client and monitor clock synchronization events.

Author

Song Yoong Siang <yoong.siang.song@intel.com>

Copyright

© 2024 Intel Corporation.

Function Documentation

clkmgr_connect()

bool clkmgr_connect

(

)

Connect the client

Returns

true on success, false on failure

clkmgr_disconnect()

bool clkmgr_disconnect

(

)

Disconnect the client

Returns

true on success, false on failure

clkmgr_getTime()

bool clkmgr_getTime

(

struct timespec *

ts

)

Retrieve the time of the CLOCK_REALTIME

Parameters

[out]

ts

timestamp of the CLOCK_REALTIME

Returns

true on success

clkmgr_getTimebaseCfgsSize()

size_t clkmgr_getTimebaseCfgsSize

(

)

Get the size of the time base configurations

Returns

The size of the time base configurations

clkmgr_statusWait()

enum Clkmgr_StatusWaitResult clkmgr_statusWait	(	int	timeout,
		size_t	timeBaseIndex,
		Clkmgr_ClockSyncData *	data_c
	)

Waits for a specified timeout period for any event changes

Parameters

[in]	timeout	TThe timeout in seconds. If timeout is 0, the function will check event changes once. If timeout is -1, the function will wait until there is event changes occurs
[in]	timeBaseIndex	Index of the time base to be monitored
[out]	data_c	Pointer to the Clkmgr_ClockSyncData

Returns

Status of wait

• Clkmgr_SWRLostConnection: Lost connection to Proxy
• Clkmgr_SWRInvalidArgument: Invalid argument
• Clkmgr_SWRNoEventDetected: No event changes detected
• Clkmgr_SWREventDetected: At least an event change detected

clkmgr_statusWaitByName()

enum Clkmgr_StatusWaitResult clkmgr_statusWaitByName	(	int	timeout,
		const char *	timeBaseName,
		Clkmgr_ClockSyncData *	data_c
	)

Waits for a specified timeout period for any event changes by name of the time base

Parameters

[in]	timeout	The timeout in seconds. If timeout is 0, the function will check event changes once. If timeout is -1, the function will wait until there is event changes occurs
[in]	timeBaseName	Name of the time base to be monitored
[out]	data_c	Pointer to the Clkmgr_ClockSyncData

Returns

Status of wait

• Clkmgr_SWRLostConnection: Lost connection to Proxy
• Clkmgr_SWRInvalidArgument: Invalid argument
• Clkmgr_SWRNoEventDetected: No event changes detected
• Clkmgr_SWREventDetected: At least an event change detected

clkmgr_subscribe()

bool clkmgr_subscribe	(	const Clkmgr_Subscription *	sub_c,
		size_t	timeBaseIndex,
		Clkmgr_ClockSyncData *	data_c
	)

Subscribe to client events

Parameters

[in]	sub_c	Pointer to the Clkmgr_Subscription
[in]	timeBaseIndex	Index of the time base to be subscribed
[out]	data_c	Pointer to the Clkmgr_ClockSyncData

Returns

true on success, false on failure

clkmgr_subscribeByName()

bool clkmgr_subscribeByName	(	const Clkmgr_Subscription *	sub_c,
		const char *	timeBaseName,
		Clkmgr_ClockSyncData *	data_c
	)

Subscribe to client events by name for the time base

Parameters

[in]	sub_c	Pointer to the Clkmgr_Subscription
[in]	timeBaseName	Name of the time base to be subscribed
[out]	data_c	Pointer to the Clkmgr_ClockSyncData

Returns

true on success, false on failure
