#include <sigTlvs.h>

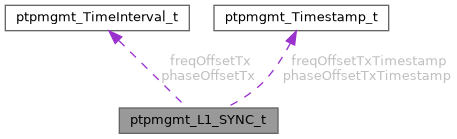

Collaboration diagram for ptpmgmt_L1_SYNC_t:
Public Attributes | |
| uint8_t | flags1 |
| uint8_t | flags2 |
| uint8_t | flags3 |
| struct ptpmgmt_TimeInterval_t | phaseOffsetTx |
| struct ptpmgmt_Timestamp_t | phaseOffsetTxTimestamp |
| struct ptpmgmt_TimeInterval_t | freqOffsetTx |
| struct ptpmgmt_Timestamp_t | freqOffsetTxTimestamp |
Detailed Description
L1_SYNC TLV
Member Data Documentation
◆ flags1
| uint8_t ptpmgmt_L1_SYNC_t::flags1 |
Bit fields flag
- bit 0: TCR L1SyncBasicPortDS.txCoherentIsRequired
- bit 1: RCR L1SyncBasicPortDS.rxCoherentIsRequired
- bit 2: CR L1SyncBasicPortDS.congruentIsRequired
- bit 3: OPE L1SyncBasicPortDS.optParamsEnabled
◆ flags2
| uint8_t ptpmgmt_L1_SYNC_t::flags2 |
Bit fields flag
- bit 0: ITC L1SyncBasicPortDS.isTxCoherent
- bit 1: IRC L1SyncBasicPortDS.isRxCoherent
- bit 2: IC L1SyncBasicPortDS.isCongruent
◆ flags3
| uint8_t ptpmgmt_L1_SYNC_t::flags3 |
Bit fields flag
- bit 0: TCT L1SyncOptParamsPortDS.timestampsCorrectedTx
- bit 1: POV L1SyncOptParamsPortDS.phaseOffsetTxValid
- bit 2: FOV L1SyncOptParamsPortDS.frequencyOffsetTxValid
- Note
- This flags belong to the Extended format of this TLV
◆ freqOffsetTx
| struct ptpmgmt_TimeInterval_t ptpmgmt_L1_SYNC_t::freqOffsetTx |
The transmission frequency offset
- Note
- This parameter belong to the Extended format of this TLV
◆ freqOffsetTxTimestamp
| struct ptpmgmt_Timestamp_t ptpmgmt_L1_SYNC_t::freqOffsetTxTimestamp |
The transmission frequency offset sample time
- Note
- This parameter belong to the Extended format of this TLV
◆ phaseOffsetTx
| struct ptpmgmt_TimeInterval_t ptpmgmt_L1_SYNC_t::phaseOffsetTx |
The transmission phase offset
- Note
- This parameter belong to the Extended format of this TLV
◆ phaseOffsetTxTimestamp
| struct ptpmgmt_Timestamp_t ptpmgmt_L1_SYNC_t::phaseOffsetTxTimestamp |
The transmission phase offset timestamp
- Note
- This parameter belong to the Extended format of this TLV
The documentation for this struct was generated from the following file:
- pub/c/sigTlvs.h
