mngTlvs.h File Reference

PTP management TLV structures. More...

#include <stdlib.h>
#include "c/types.h"

Include dependency graph for mngTlvs.h:

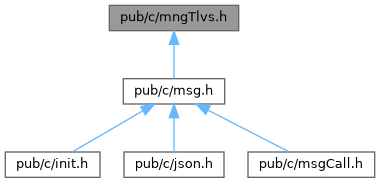

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ptpmgmt_CLOCK_DESCRIPTION_t
struct	ptpmgmt_USER_DESCRIPTION_t
struct	ptpmgmt_INITIALIZE_t
struct	ptpmgmt_FAULT_LOG_t
struct	ptpmgmt_DEFAULT_DATA_SET_t
struct	ptpmgmt_CURRENT_DATA_SET_t
struct	ptpmgmt_PARENT_DATA_SET_t
struct	ptpmgmt_TIME_PROPERTIES_DATA_SET_t
struct	ptpmgmt_PORT_DATA_SET_t
struct	ptpmgmt_PRIORITY1_t
struct	ptpmgmt_PRIORITY2_t
struct	ptpmgmt_DOMAIN_t
struct	ptpmgmt_SLAVE_ONLY_t
struct	ptpmgmt_LOG_ANNOUNCE_INTERVAL_t
struct	ptpmgmt_ANNOUNCE_RECEIPT_TIMEOUT_t
struct	ptpmgmt_LOG_SYNC_INTERVAL_t
struct	ptpmgmt_VERSION_NUMBER_t
struct	ptpmgmt_TIME_t
struct	ptpmgmt_CLOCK_ACCURACY_t
struct	ptpmgmt_UTC_PROPERTIES_t
struct	ptpmgmt_TRACEABILITY_PROPERTIES_t
struct	ptpmgmt_TIMESCALE_PROPERTIES_t
struct	ptpmgmt_UNICAST_NEGOTIATION_ENABLE_t
struct	ptpmgmt_PATH_TRACE_LIST_t
struct	ptpmgmt_PATH_TRACE_ENABLE_t
struct	ptpmgmt_GRANDMASTER_CLUSTER_TABLE_t
struct	ptpmgmt_UNICAST_MASTER_TABLE_t
struct	ptpmgmt_UNICAST_MASTER_MAX_TABLE_SIZE_t
struct	ptpmgmt_ACCEPTABLE_MASTER_TABLE_t
struct	ptpmgmt_ACCEPTABLE_MASTER_TABLE_ENABLED_t
struct	ptpmgmt_ACCEPTABLE_MASTER_MAX_TABLE_SIZE_t
struct	ptpmgmt_ALTERNATE_MASTER_t
struct	ptpmgmt_ALTERNATE_TIME_OFFSET_ENABLE_t
struct	ptpmgmt_ALTERNATE_TIME_OFFSET_NAME_t
struct	ptpmgmt_ALTERNATE_TIME_OFFSET_MAX_KEY_t
struct	ptpmgmt_ALTERNATE_TIME_OFFSET_PROPERTIES_t
struct	ptpmgmt_TRANSPARENT_CLOCK_PORT_DATA_SET_t
struct	ptpmgmt_LOG_MIN_PDELAY_REQ_INTERVAL_t
struct	ptpmgmt_TRANSPARENT_CLOCK_DEFAULT_DATA_SET_t
struct	ptpmgmt_PRIMARY_DOMAIN_t
struct	ptpmgmt_DELAY_MECHANISM_t
struct	ptpmgmt_EXTERNAL_PORT_CONFIGURATION_ENABLED_t
struct	ptpmgmt_MASTER_ONLY_t
struct	ptpmgmt_HOLDOVER_UPGRADE_ENABLE_t
struct	ptpmgmt_EXT_PORT_CONFIG_PORT_DATA_SET_t
struct	ptpmgmt_TIME_STATUS_NP_t
struct	ptpmgmt_GRANDMASTER_SETTINGS_NP_t
struct	ptpmgmt_PORT_DATA_SET_NP_t
struct	ptpmgmt_SUBSCRIBE_EVENTS_NP_t
struct	ptpmgmt_PORT_PROPERTIES_NP_t
struct	ptpmgmt_PORT_STATS_NP_t
struct	ptpmgmt_SYNCHRONIZATION_UNCERTAIN_NP_t
struct	ptpmgmt_PORT_SERVICE_STATS_NP_t
struct	ptpmgmt_UNICAST_MASTER_TABLE_NP_t
struct	ptpmgmt_PORT_HWCLOCK_NP_t
struct	ptpmgmt_POWER_PROFILE_SETTINGS_NP_t
struct	ptpmgmt_CMLDS_INFO_NP_t
struct	ptpmgmt_PORT_CORRECTIONS_NP_t
struct	ptpmgmt_EXTERNAL_GRANDMASTER_PROPERTIES_NP_t

Macros
#define	LIBPTPMGMT_EVENT_BITMASK_CNT   (64)
#define	LIBPTPMGMT_MAX_MESSAGE_TYPES   (16)

Functions
void	ptpmgmt_setEvent_lnp (struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *tlv, int event)
void	ptpmgmt_clearEvent_lnp (struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *tlv, int event)
void	ptpmgmt_clearAll_lnp (struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *tlv)
bool	ptpmgmt_getEvent_lnp (const struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *tlv, int event)

Detailed Description

PTP management TLV structures.

Author

Erez Geva <ErezGeva2@gmail.com>

Copyright

© 2021 Erez Geva

Macro Definition Documentation

LIBPTPMGMT_EVENT_BITMASK_CNT

#define LIBPTPMGMT_EVENT_BITMASK_CNT   (64)

SUBSCRIBE_EVENTS_NP.bitmask size

LIBPTPMGMT_MAX_MESSAGE_TYPES

#define LIBPTPMGMT_MAX_MESSAGE_TYPES   (16)

size of PORT_STATS_NP rxMsgType and txMsgType

Function Documentation

ptpmgmt_clearAll_lnp()

void ptpmgmt_clearAll_lnp

(

struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *

tlv

)

Clear all events in bitmask

Parameters

[in,out]

tlv

with the events storage

ptpmgmt_clearEvent_lnp()

void ptpmgmt_clearEvent_lnp	(	struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *	tlv,
		int	event
	)

Clear event bit in bitmask

Parameters

[in,out]	tlv	with the events storage
[in]	event	to clear

ptpmgmt_getEvent_lnp()

bool ptpmgmt_getEvent_lnp	(	const struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *	tlv,
		int	event
	)

Get bit value in bitmask

Parameters

[in,out]	tlv	with the events storage
[in]	event	to query

Returns

true if event set

ptpmgmt_setEvent_lnp()

void ptpmgmt_setEvent_lnp	(	struct ptpmgmt_SUBSCRIBE_EVENTS_NP_t *	tlv,
		int	event
	)

Set event bit in bitmask

Parameters

[in,out]	tlv	with the events storage
[in]	event	to set
